Product Show

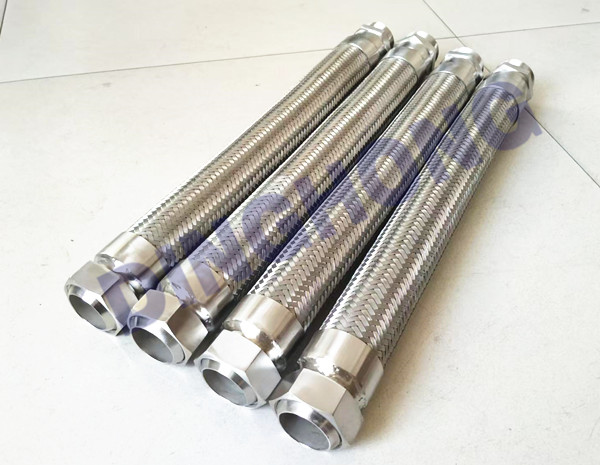

Product name : Stainless steel 304 braided flexible metal hose
Item :
Price :

Details :

Stainless steel 304 braided flexible metal hose products description:
Flexible metal hose also known as stainless steel corrugated hose, braided flexible pump connectors, metal bellows hose, etc.
Stainless steel flexible metal hose is an important connecting component in engineering technology. It is composed of corrugated flexible hose, braided mesh cover layer and joint. It is produced by DINGHONG company, a professional flexible metal hose facotry in china. as compensation element, sealing element, connecting element and shock absorber in various gas and liquid pipeline systems and length, temperature, position and angle compensation systems, stainless braided flexible hose is applied in aerospace, petrochemical industry, mine electronics, mechanical shipbuilding, medical and health, textile electronics, energy construction and other fields.

304 braided flexible hose

Flexible metal hose assembly is mainly composed of flexible hose body with various connectors ends. the inner pipe of metal hose is spiral or annular shape thin-wall stainless steel bellows, outer braided mesh cover is weaved by stainless steel wire or steel belt by certain specification, the corrugated pipe of metal hose is made by longitudinal seam stainless steel thin walled tube, using high precision plasticity deformation technology, the elastic characteristic of bellows outline decides hose’s flexibility and fatigue resistance. flexible metal hose can easily absorb all kinds of movement transformation and cyclic loading, especially satisfying compensation for larger displacement, plays an important role on thermal expansion absorption, vibration adsorption of pipeline systems.

304 braided flexible metal hose construction:
Corrugated hose, braided mesh layer and ends fittings.


Flexi hoseStainless steel braided hose
Stainless steel braided flexible metal hose technical data:
1. Hose material: SS304, SS316, SS321
2. Hose size: 1/4Inch-4Inch(6-100mm)
3. Hose type: annular or spiral corrugated
4. Connection type: female and male thread
5. Thread standard: Metric, JIC, BSP or NPT thread
6. Maximum working pressure: 200Bar
7. Braided mesh layer: single or two layer braided mesh
8. Working temperature range: from -200
 to +500℃
9. Hose length can be produced according to buyer's requirements.
Braided flexible metal hose advantages:
Resistance to high temperatures and low temperatures
High strength and durability
Flexibility ideal for liquids, slurries, and gases
Vibration absorption
Reduces misalignment
Configurable and customizable based on machinery location and placement
Extended life cycle

Braided flexible metal hose
SS braided flexible metal hose

Application of stainless steel braided flexible metal hose:
Bulk Material Handling
Chemical Processing
Oil Refining
Petrochemical
Pump station
Paper industry
Solar Power Plants
Steam
Power Plants
Waste water Treatment
Industry field:
Cryogenics and refrigeration, Food industry, Edible oil industry, Chemical industry, Medical industry, Dairy industry, Wine-making industry, Marine, Steel mills, Power station, Agro-and Petro-chemical, Heating and ventilation, Paper and pulp industry, Water or waste water treatment industry, Palm oil industry, Boiler industry, etc.



Provide free samples of Stainless steel 304 braided flexible metal hose for testing.
The minimum order quantity of braided flexible metal hose is 1pcs
Stainless steel flexible metal hose

Please contact us for more information about stainless steel 304 braided flexible metal hose products:
