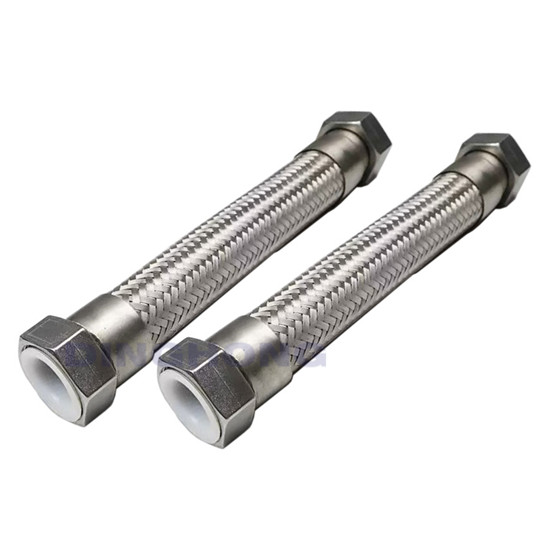

PTFE lined stainless flexible hose assembly

PTFE Lined Flexible Hose that is constructed of a PTFE liner with metal corrugated hose, stainless steel external braid and thread ends. The main features of PTFE hoses are offering a bacteria free transfer of media with less turbulence and increased flow for easier cleaning and faster transport. This product works well in Pharmaceutical, Food and Beverage, Chemical and other applications that require conductivity to help prevent static-electric discharge.


PTFE lined stainless flexible hose assembly specifications:
1. Metal corrugated hose material: stainless steel 304 or 316, 321
2. Braided wire material: stainless steel 304 or 316
3. Hose size: 3/4inch - 4inch
4. Connect type: female or male thread ends (BSP or NPT, Metric thread)
5. Ptfe lined hose type: convoluted ptfe hose
6. Maximum working pressure: 75Bar
7. Working temperature range: -70℃  -- 260℃
