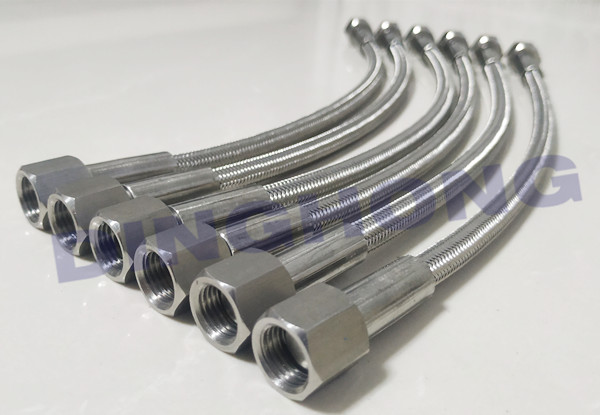

High quality SS304 braided PTFE hose assembly

Braided PTFE hose assembly construction:

Smooth or convoluted bore PTFE inner hose, SS304 braided mesh layer and connector fittings.

SS304 braided PTFE hose assembly specification:
1 Inner hose material: PTFE
2 Braided reinforced mesh material: SS304 or SS316
3 Hose size: 1/4INCH -3INCH
4 Hose type: smooth bore or convoluted type
5 Connect type: thread, Tri clamp flange, quick coupling, etc
6 Connector fittings material: SS304, SS316L or SS201
7 Working pressure range: 0.1-26Mpa
8 Working temperature range: -70~+260℃
9 Hose length can be produced according to your request

• in pumps for pumping corrosive liquids, crude oil, gas condensate, oil water and groundwater, as well as for delivering purified water while cooling nuclear reactors; in hydraulic systems of machines and mechanisms; for canning corrosive substances from machines, barrels and tanks; for supplying gas and petrol at filling stations; for supplying gas to household gas stoves; for supplying concrete grout, paint or varnish.
•
