Product name : Stainless steel metal bellows expansion joint
Item :
Price :

Details :

The Stainless steel metal bellows expansion joint as known as bellows compensator, it is a compensation element. use of bellows telescopic deformation effectively, used to absorb pipeline, container size change due to reasons such as heat bilges cold shrink etc, or absorb pipeline, container axial, lateral and angular displacement. can also be used for noise reduction vibration reduction, widely used in modern industry.
Metal bellows expansion joint construction:
Corrugated bellows hose and connector fittings

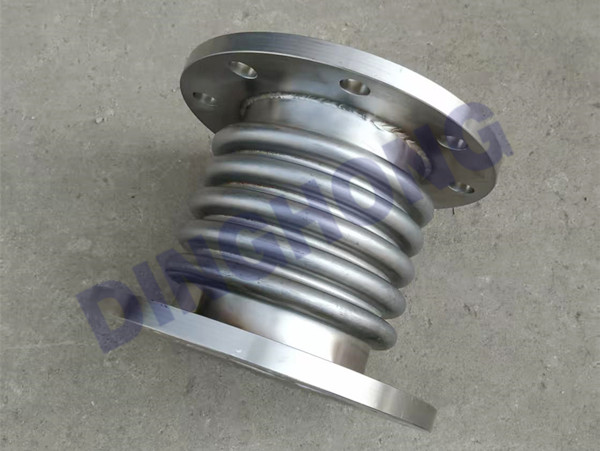

Bellows expansion joint























Metal bellows expansion joint technical data:

1 Hose material: SS304, SS316, SS321
2 Hose size: 1-1/4"-80"
3 Bellows layer: 1-3 layer bellows
4 Hose type: annular corrugated
5 Connect type: flange or welded pipe
6 Flange standard: ANSI, JIS, DIN, GOST, BS, GB, Table E etc
7 Operating pressure range: 0.6-2.5Mpa (depend on hose size)
8 Working temperature: -200~+500℃
9 Flange material: carbon steel or stainless steel 304,316 etc
10 Total assembly length can be produced according to your request
Metal bellows expansion joint advantage:
Long lasting
Corrosion resistant
Fire resistant
High physical strength
Resistant to penetration and damage
High safety factor
Excellent at temperature and pressure extremes

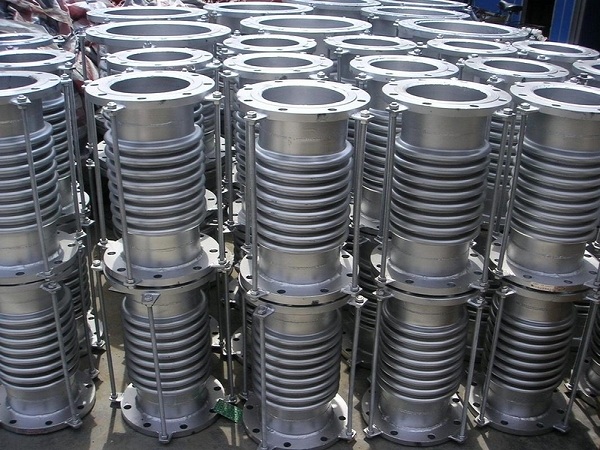

Stainless steel expansion joint






















Metal expansion joint























Stainless steel metal bellows expansion joint application:

Water and steam lines
Pumps and compressors
Exhaust gases
Food processing
Solvents, resins and corrosive media
Fuels and gas
Tank settlement
Industries:
Cryogenics and refrigeration, Marine, Food industry, Edible oil industry, Chemical industry, Medical industry
Dairy industry, Water or waste water treatment industry, Iron and steel industry, Power generation, Agro-and petro-chemical
Heating and ventilation, Paper and pulp, Hot oil boiler industry etc.
Stainless steel metal expansion joint application
