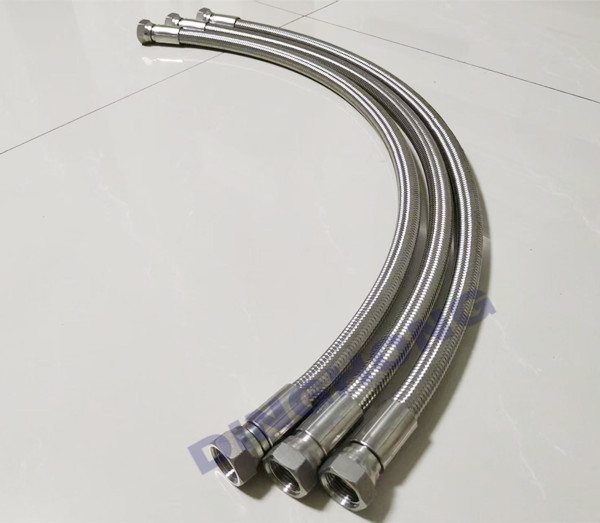

JIC thread 304 stainless braided ptfe hose
304 stainless braided ptfe hose construction:
Inner layer: the hose is made of 100% PTFE Teflon tube (polytetrafluoroethylene), is resistant to high temperature, acid and alkali, and does not contain any plasticizer, additive, color, etc.
Outer braided layer: Made of SS304 stainless steel braided wire, it strengthens the strength of hose pipe and facilitates the connection of various connectors.
Connector: Made of SS304, SS316 stainless steel or carbon steel material. JIC standard thread fittings on both ends.(BSP, NPT, Metric standard thread fittings are also available).
Operating temperature characteristics: temperature resistance range -70°C~260°C. Maximum working pressure, burst pressure, as the working temperature rises, its efficiency decreases. the operating pressure and burst pressure data were tested at room temperature of 25°C.
The JIC standard is widely recognized within the industry. The design of JIC threads can closely fit with the corresponding connectors, ensuring a good sealing effect and reducing the risk of fluid leakage. This enables PTFE hoses with JIC threads to be compatible with numerous devices and accessories on the market that conform to this standard. Especially in high-pressure systems where sealing performance is crucial, it facilitates pipeline installation and replacement, thereby reducing usage costs and maintenance difficulties.
Braided ptfe hose features:
Low chemical activity, resistant to various chemicals, weather resistance, corrosion resistance, not easy to age, low surface friction coefficient, strong anti-adhesive, excellent electrical properties, and can add anti-static function.
JIC thread 304 stainless braided ptfe hose technical data:
1. Inner hose material: the hose made by the PTFE, its characteristics as endure high temperature, acid, alkali and other characteristics.
2. Braided wire material: stainless steel 304 (SS316 also available)
3. Hose size: 1/4inch - 3inch
4. Hose type: smooth or convoluted bore
5. Connect standard: JIC thread
6. Connector fittings material: SS304, SS316L or carbon steel
7. Maximum working pressure range: 26Mpa(depend on hose size)
8. Working temperature range: -70℃ ~ +260℃
9. PTFE hose length can be special customized according to your request

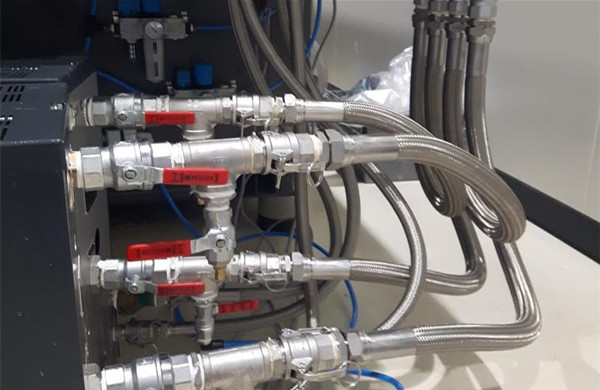

JIC thread 304 stainless braided ptfe hose applications:
Food industry, Brewing industry, Food ingredients seasoning industry, Cosmetic industry, Dairy industry, Lubricating oil industry, The alcohol industry, Welding equipment, Mechanical tubing, Steam locomotive brake tubing, High pressure steam environment, Chemical industry, Hydraulic Equipment Machinery.
We can provide JIC thread 304 stainless braided ptfe hose sample for testing.
The minimum order quantity of 304 stainless braided ptfe hose is 1 pcs.
