Flange expansion flexible joint

Flange expansion flexible joint also known as flange metal joint, bellows expansion joint, flange flexible hose etc.
The flange expansion flexible joint product is mainly used between the pump and the fixed pipeline, between the tank and the pipeline, as a flexible connection pipe, weakening or eliminating the impact force of the fluid in the pipeline or the external shock force, and can effectively compensate the position movement of the pipeline.

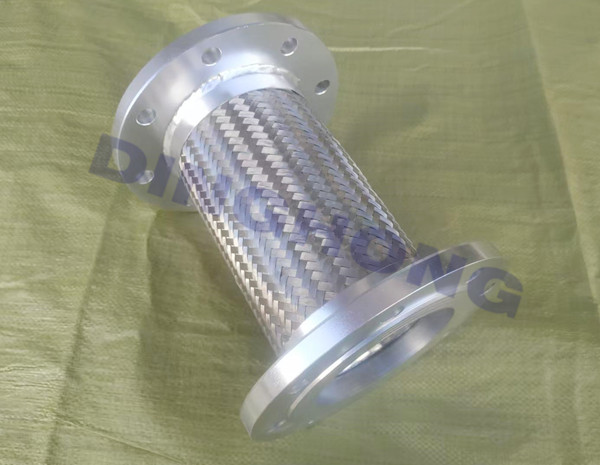

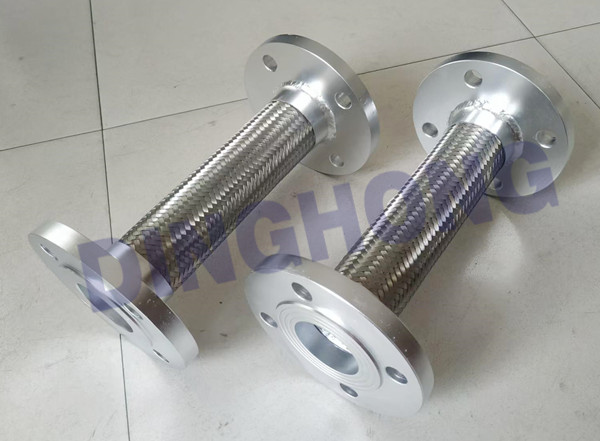

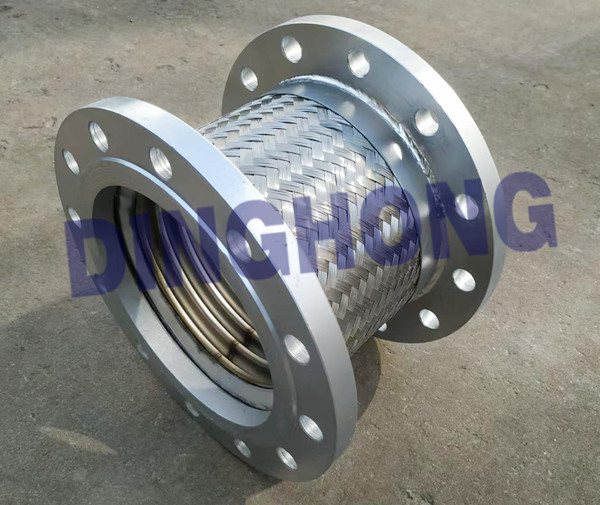

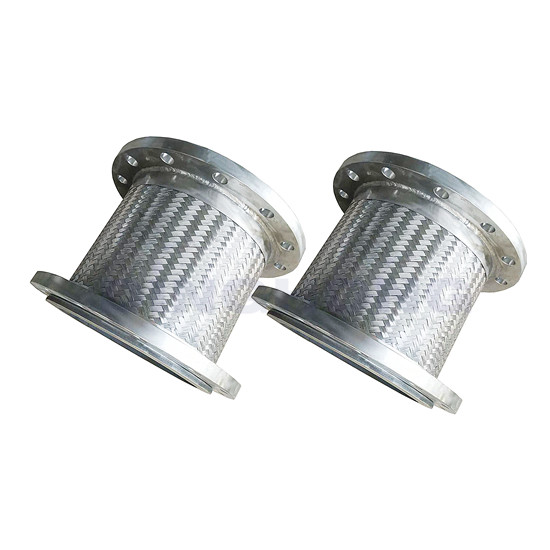

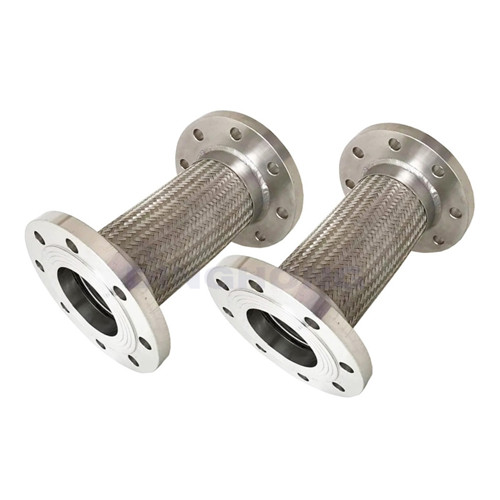

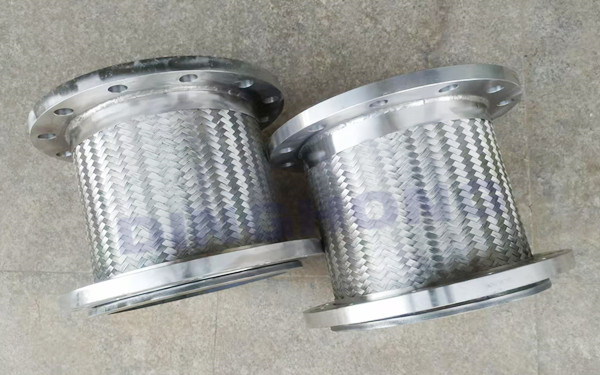

Expansion flexible hose joint consist:
inner metal bellow hose, braided mesh cover layer and fixed or floating flange ends

Flange expansion flexible joint parameters:
1. Hose material: stainless steel 304 or 316, 321
2. Braided wire material: stainless steel 304 or 316
3. Hose size: 1/2inch - 24inch
4. Maximum working pressure: 6.4Mpa(depend on hose size)
5. Working temperature range: -200°C --- +500°C
6. Connection type: fixed or floating flange
7. Flange standard: ASME, ANSI, JIS, DIN, GOST, GB, BS, Table E, etc
8. Flange material: carbon steel or stainless steel 304 or 316
9. Hose length: 0.2m or according to your requirements




We are a high quality flange expansion flexible joint supplier in China, Welcome to contact us for more information: info@apdhhose.com
