Product name : Corrugated convoluted ptfe teflon hose assemblies
Item :
Price :

Details :

Corrugated convoluted ptfe teflon hose assemblies consist of convoluted ptfe hose and flange ends.

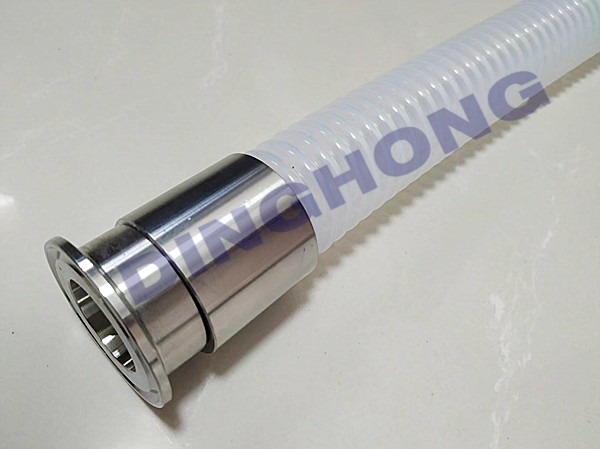

Corrugated ptfe hose with flange ends
Corrugated convoluted ptfe teflon hose assemblies specifications:
1. Hose size: DN13-400mm
2. Hose thickness: 0.7-2.0mm
3. Working temperature range: from -70℃ to +260℃
4. Connect type: floating flange on both ends (thread, camlock quick coupling, tri clamp, union also available)
5. Flange material: SS304 or 316, PP, PTFE, etc
6. Flange standard: ANSI, ASME, DIN, JIS, GB, GOST, BS, Table E, etc

Convoluted ptfe teflon hose features:
High temperature resistance -- operating temperature up to 260℃.

Low temperature resistance -- good mechanical toughness, Even when the temperature drops to -196℃, 5% elongation can be maintained.
Corrosion resistance - inert to most chemicals and solvents, resistant to strong acids and bases, water and various organic solvents.
Weather resistance - has the best aging life of plastics.
High lubrication - the lowest friction coefficient of solid materials.
Non-adhesion - is the minimum surface tension in a solid material and does not adhere to any substance.
Corrugated teflon hose with flange
Corrugated convoluted ptfe teflon hose assemblies applications:
It has excellent chemical stability, high corrosion resistance, sealing, high lubrication, not sticky, electric insulation and good anti-aging properties, chemical resistance, abrasion resistance, toughness and high strength, high temperature resistant, easy to install, widely used in aviation, electronics, electrical, chemical, machinery,  construction, textile, pharmaceutical and other industrial requirements of high corrosion resistance of low pressure fluid pipelines.

Flange joint ptfe hose assembly

Welcome to contact us for more information about convoluted ptfe teflon hose assemblies:
E-mail: info01@apdhindustrial.com
WhatsApp WeChat: +8618832752527
