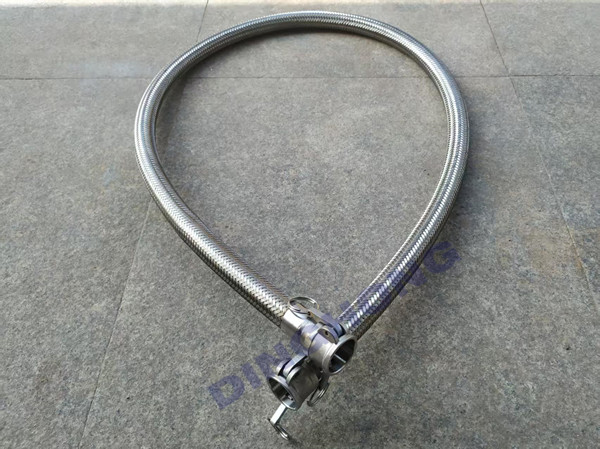

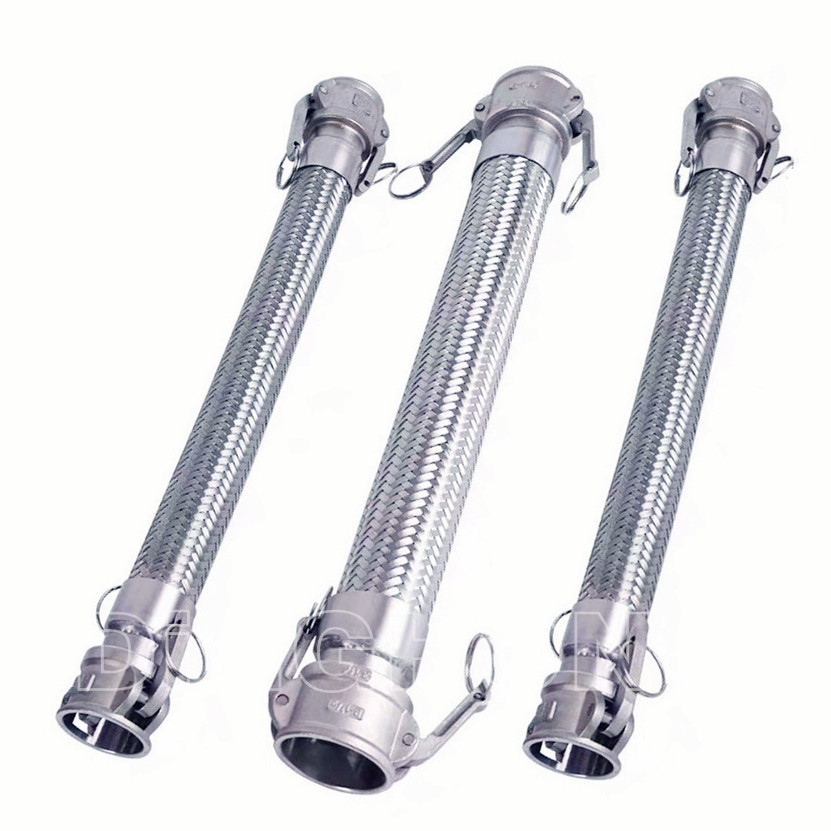

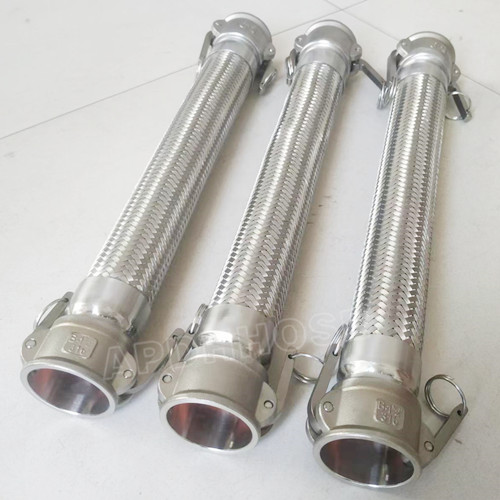

Cam lock quick coupling flexible metal hose construction:

corrugated hose, braided wire reinforced layer and cam lock quick coupling fittings.


Quick coupling flexible metal hose technical data:
1 Hose material: SS304 or SS316, SS321
2 Braided wire material: SS304, SS316
3 Hose size: 1/2inch - 8inch
4 Hose type: annular or helical corrugated
5 Connection type: Cam lock quick coupling A or D etc
6 Connector fittings material: SS304 or SS316
7 Maximum working pressure: 2.5Mpa
8 Working temperature range: -200℃ to +500℃
9 Hose length can be provided according to per your request

Cam lock quick coupling flexible metal hose advantage:
Vacuum proof
Long-lasting
Flexible
Corrosion resistant
Fire resistant
High physical strength
Resistant to penetration and damage
High safety factor
Excellent at temperature and pressure extremes
