Product name : Food Grade Tri Clamp Flexible Metal Hose
Item :
Price :

Details :

Food Grade Tri Clamp Flexible Metal Hose

The Tri clamp flexible metal hose is a kind of flexible mtal hose with a tri clamp as a connector, which can be quickly disassembled and assembled. It is mainly used as a transmission or unloading flexible hose. As a food-grade tri clamp flex hose, it can be used in the beer, beverage, dairy products and other industries. The flexible hose can also be lined with a PTFE layer to resist the corrosion of acidic and alkaline substances and can be used in chemical industry pipelines.

Tri clamp flexible metal hose construction:
corrugated hose, braided mesh layer and Tri clamp fittings ends.

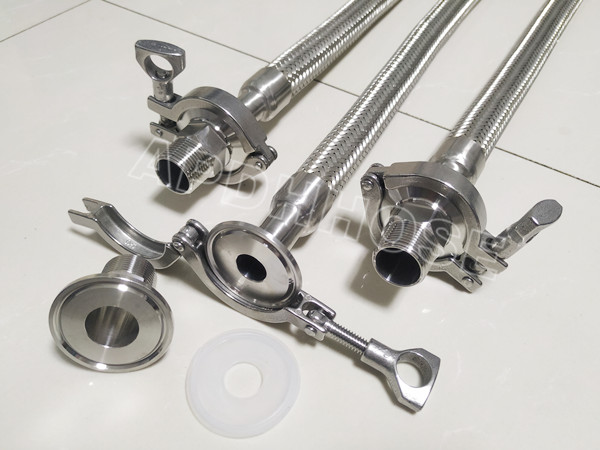

Tri clamp flexible metal hose



Tri clamp flexible metal hose technical data:
1 Hose material: SS304, SS316
2 Braided mesh material: SS304 or SS316
3 Hose size: 1/2Inch - 8Inch
4 Hose type: annular or spiral corrugated
5 Connect type: sanitary grade Tri clamp
6 Connector fittings material: SS304 or SS316L
7 Maximum pressure range: 2.5Mpa(depend on hose size)
8 Working temperature range: -200℃ ~ +500℃
9 Tri clamp flexible hose assembly length: as per your request

Tri Clamp Flexible Metal Hose Advantage:
Vacuum proof
Long-lasting
Corrosion resistant
Quick installation and disassembly
High physical strength
Resistant to penetration and damage
High safety factor
Excellent at temperature and pressure extremes

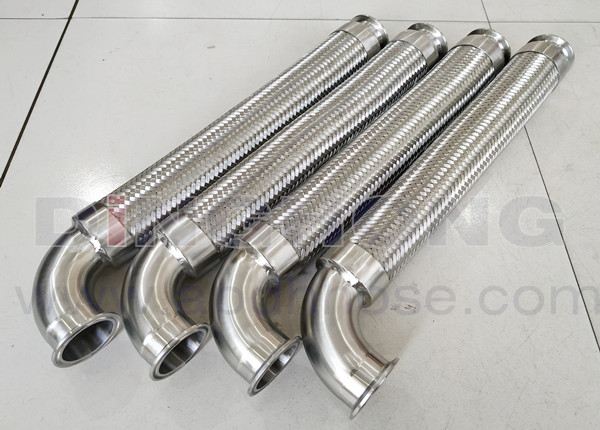

Flexible metal hose with tri clamp
Stainless steel Tri clamp flexible metal hose application:
Food industry
Edible oil industry
Chemical industry
Medical industry
Dairy industry
Beer industry
Beverage industry
Heating and ventilation



Provide Food Grade Stainless Steel Tri Clamp Flexible Metal Hose samples for testing
The Minimum order quantity for food grade tri clamp flexible metal hose is 1pcs

Welcome to contact us for more detailed information:
E-mail: info@apdhhose.com
WhatsApp WeChat: +8618832752527
