Product Show
Product name : BSP NPT M Threaded flange flexible braided hose
Item :
Price :

Details :

BSP NPT M Threaded flange flexible braided hose

Threaded flange flexible braided hose construction:
inner corrugated hose, braided mesh, collars and connector fittings on both side.

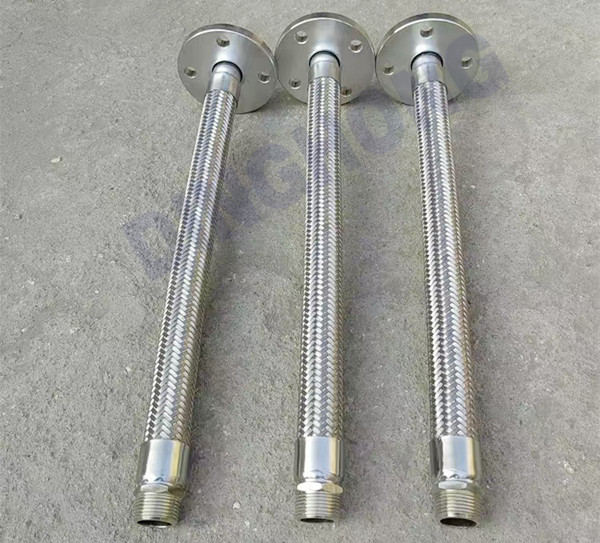

male thread flange flex hose

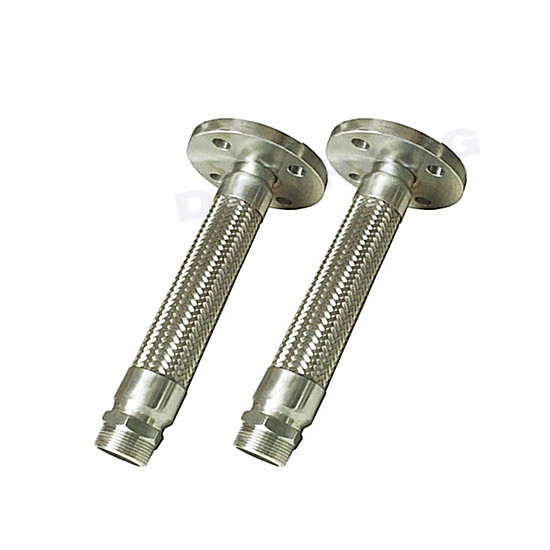

Male thread flange braided hose
Thread flange flexible braided hose technical data:

Hose material SS304, SS316 or SS321
Braided mesh material SS304, SS316
Fittings material stainless steel 201, 304, 316 or carbon steel
Hose diameter 1/4inch - 4inch
Hose type annular or spiral corrugated
Connection type male or female thread with floating or fixed flange
Flange standard

 ANSI or JIS, DIN, GOST, BS, GB,TABLE E, etc

Threaded standard BSP or NPT, Metric, JIC
Maximum working pressure 200Bar
Working temperature -200°c -- +500°c
Braided mesh layer single or two layers braided mesh
Hose length 0.2-20m or as per your request
Flexible braided hose function:
1) Offset pipeline installation stress
2) Compensation pipeline location
3) Shock absorption

Flexible braided hose application:
1. Fuel gas heater line and control valves
2. Gas turbine fuel atomizer and delivery lines
3. Air, gas, steam and water lines
4. Oil burner fronts–fuel atomizer lines
5. Steam and combustion turbine exhaust
6. High pressure oil and lube lines
7. Diesel and gas generators
8. Gas turbine bearing lift oil
9. CO2 and hydrogen gas systems


Female threaded flange flex hoses

We can provide stainless steel flexible braided hose samples for testing, The Minimum order quantity of threaded flange flexible braided hose is 1pcs

Welcome to contact us for more information:
E-mail: info01@apdhindustrial.com

WhatsApp WeChat: +8618832752527
