PTFE lined flexible hose factory

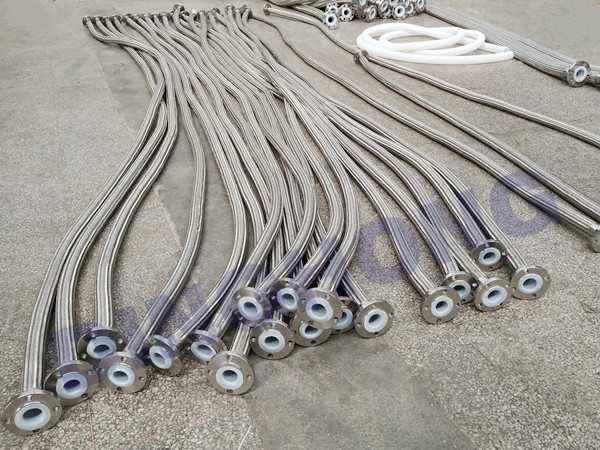

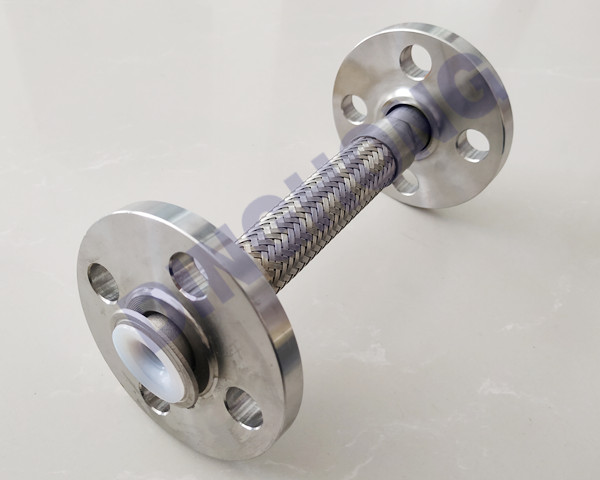

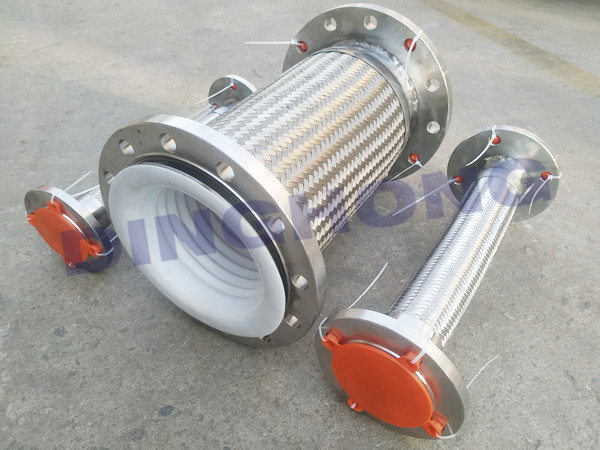

PTFE lined flexible hose is a composite type hose made of polytetrafluoroethylene (PTFE) as the inner liner material and stainless steel corrugated pipe as the outer layer. Its core structure consists of a convoluted formed PTFE liner layer and a high-strength outer braided mesh. This design endows the hose with excellent chemical inertness, high-temperature resistance and flexibility. The helical structure of the PTFE inner liner also facilitates the rapid evacuation of residual media, making it suitable for high-precision fluid transportation pipelines.
PTFE lined flexible hose specification:
1. hose size: DN15-900mm
2. Connect type: fixed x floating flange, fixed x fixed flange, swivel x swivel flange ends
3. The length of the ptfe lined flexible hose: as per your request
4. flange standard: ANSI, JIS, DIIN, TABLE E, BS, EN1092, etc
5. flange material: SS304, 316L or carbon steel
6. hose and braided mesh material: SS304, SS316

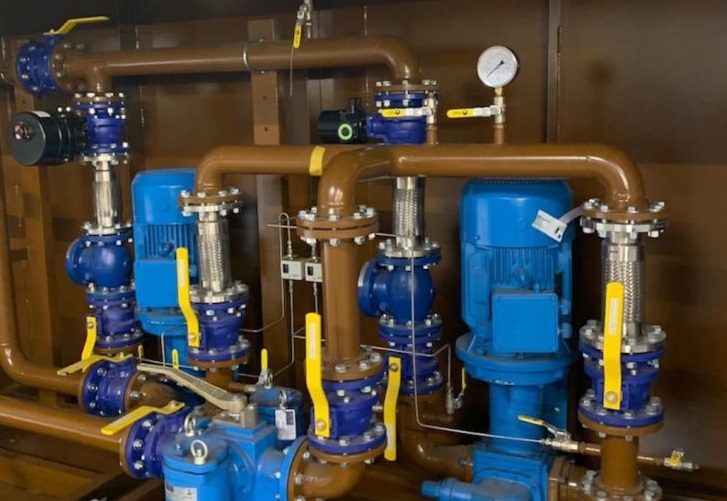

PTFE lined flexible hose application:
As an ideal pipeline for transporting highly corrosive fluids, it can withstand extreme chemical environments such as strong acids, strong bases, and strong oxidants.It is used for transporting corrosive gases/liquids at high temperatures (such as sulfuric acid, hydrochloric acid, chlorine gas, etc.)
In industries like petroleum, steam, gas, and heavy oil. It is used for transporting media.
