Product name : Female and flange stainless flexible hose factory
Item :
Price :

Details :

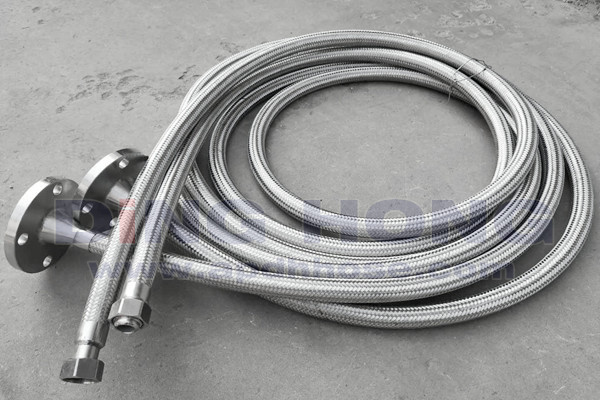

Female and flange stainless flexible hose factory

Stainless flexible hose is mainly composed of flexible body(corrugated pipe), braided mesh layer and connectors. the inner pipe of flexible hose is spiral or annular shape thin-wall stainless steel bellows, outer braided mesh layer is weaved by stainless steel wire by certain specification, the corrugated pipe of flexible hose is made by longitudinal seam stainless steel thin walled tube, using high precision plasticity deformation technology, the elastic characteristic of bellows outline decides hose’s flexibility and fatigue resistance. stainless steel braided flexible hose can easily absorb all kinds of movement transformation and cyclic loading, especially satisfying compensation for larger displacement, plays an important role on thermal expansion absorption, vibration adsorption of pipeline systems.
High quality flange and thread braided hose pipe

Female and flange stainless flexible hose specification:
1. Hose material: SS304 or SS316, SS321
2. Hose size: 1/2INCH - 4INCH
3. Hose type: annular or helical corrugated
4. Connection type: swivel nut and flange
5. Thread standard: Metric, JIC, BSP or NPT thread, etc
6. Flange standard: ANSI, ASME, JIS, DIN, GOST, BS, GB, Table E, etc
7. Connector material: stainless steel 201, 304, 316 or carbon steel
8. Maximum working pressure: 200Bar (depend on hose size)
9. Braided mesh layer: single or two layer braided mesh
10. Working temperature range: -200℃ ~ +500℃
11. Hose assembly length: as per your request
12. Packaging: plastic film with wooden case

Female thread and flange stainless flexible hose advantages:
Long lasting
Flexible
Corrosion resistant
Fire resistant
High physical strength
Resistant to penetration and damage
High safety factor
Excellent at temperature and pressure extremes

Stainless flexible hose assemblies application:
Cryogenics and refrigeration
Food industry
Edible oil industry
Chemical industry
Medical industry
Dairy industry
Wine industry
Steel mills
Power station
Heating and ventilation
Paper and pulp industry
Water or wastewater treatment industry
Palm oil industry
Boiler industry
Flange flexi hose pipe

We can provide Female and flange stainless flexible hose samples for testing.
Special customized services are also available.
The minimum order quantity of Female and flange stainless flexible hose is 1 pcs.
