Product name : Swivel nut connect SS flexible braided hose
Item :
Price :

Details :

SS Flexible braided hose also known as stainless steel bellows hose, flexible braided connectors, it’s a high quality flexible connecting pipe in modern industry, also an important connection element in engineering technology, and it plays as compensating components, sealing components, connecting components and shock absorption components in all kinds of gas transmission, liquid transmission systems and length, temperature, location and angle compensation systems.

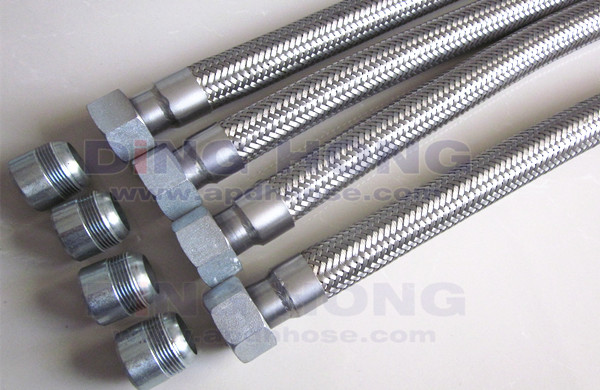

SS304 flexible braided hose
SS flexible braided hose is mainly composed of flexible body (corrugated pipe), braided reinforced mesh cover and carbon steel material swivel nut ends in different forms. the inner metal hose is spiral or annular shape thin wall stainless steel bellows, outer mesh is weaved by stainless steel wire or steel belt by certain specification. the corrugated metal hose is made by longitudinal seam stainless steel thin wall hose, using high precision plasticity deformation technology, the elastic characteristic of bellows outline decides hose’s flexibility and fatigue resistance. flexible braided hose can easily absorb all kinds of movement transformation and cyclic loading, especially satisfying compensation for larger displacement, plays an important role on thermal expansion absorption, vibration adsorption of pipeline systems.

A swivel nut connect ss flexible braided hose assembly comprises of the hose and the end fittings, and are determined by the application in which the hose assembly is going to be placed. Compared to rubber and other materials which are used for hose pipes, ss flexible braided hose assemblies are an excellent choice for a variety of industrial usage and are suitable for the most demanding technical specification.

Flexible braided hose assembly construction:
Corrugated inner hose, braided mesh layer and carbon steel swivel nut fittings.


Flexible braided hose specifications:
1 Hose and mesh material: SS304, SS316, SS321
2 Hose size: 1/4inch - 4inch
3 Hose thickness: 0.2-0.4mm
4 Hose type: annular or helical corrugation
5 Connection type: female swivel nut
6 Thread standard: BSP or NPT, Metric, JIC, etc
7 Maximum working pressure: 20Mpa
8 Working temperature rating: -200
℃ ~ +500℃
9 Swivel nut material: carbon steel
10 Overall length: 0.2-20m or as per your request

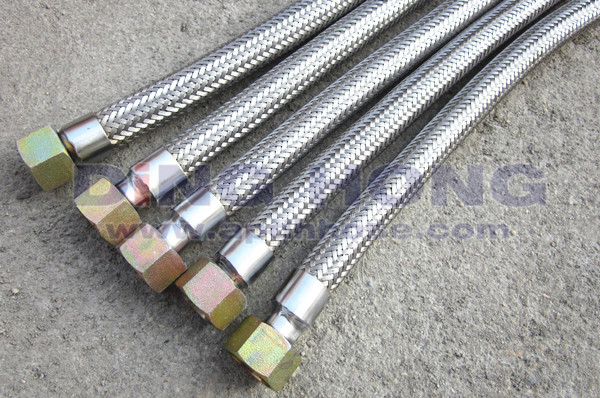

Swivel nut stainless flexible hose



Flexible braided hose function:
Reduce the installation stress of pipeline
Compensation pipe position
Absorb the vibration of the pipeline system

Application of the SS flexible braided hose:
Power industry, Steel mill, Chemical industry, Oil refining industry, Cement industry
Ships and Marine industries, Instrument industry, Diesel exhaust system, Oil and gas transportation
Electricity industry, Thermal pipe network, Renewable energy, Water treatment and wastewater treatment, Boiler industry, Pharmaceutical industry, Semiconductor and electronics industries,
Measurement and control system, Vacuum and high vacuum system, Pulp and paper industry.



We are engaged in offering a wide range of ss flexible braided hose with swivel nut fittings to our clients.
The offered range of product is made from high grade quality raw material to meet the international quality standard.
These swivel nut connect flexible braided hoses are manufactured under the supervision of best quality experts using advanced technology.
These flexible braided hoses are highly demanded in the market due to their world class quality and available at leading market price.

SS flexible pipe


We can provide free samples of swivel nut connect ss flexible braided hose for testing
The minimum order quantity of flexible braided hose is 1 pcs
